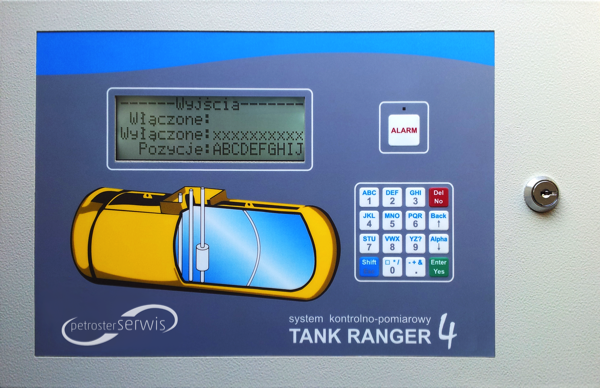

Tank Ranger 4 measurement and monitoring system.
Constant measurement of the quantity of fuel in tanks and the detection of leaks.

Tank Ranger 4 supports 1 to 8 magnetostrictive measurement probes or analog probes (4..20 mA, MODBUS), as well as 1 to 8 various types of sensors manufactured by the company Petroster-Serwis.
It also serves as an alarming system for overflow, as well as a safety system controlling, for example, a stop valve, a gate, a unit or another device.
It cooperates with building automation master systems, fire-safety systems and serves as a safety system.
A printer for reports is available as an option.

Depending on the program's settings, an alarm causes the activation of light signaling (a lamp) or acoustic signaling (a buzzer), or the printout of an alarm report. Depending on the program's configuration, the alarm may also cause the activation of 1 to 10 relays which enable the control over other external devices. An alarm situation may also be signaled with a text message via a GSM module, or read via a web browser.

• product quantity measurement
• product temperature measurement
• temperature adjustment of product quantity
• automatic delivery detection
• water quantity measurement
• signaling low or high product, high water, delivery
• probe failure signaling
• optical sensor activation signaling for liquids or vapor (hydrocarbons, alcohols etc.)
• sensor failure signaling
• remote notification about events
• control over external devices

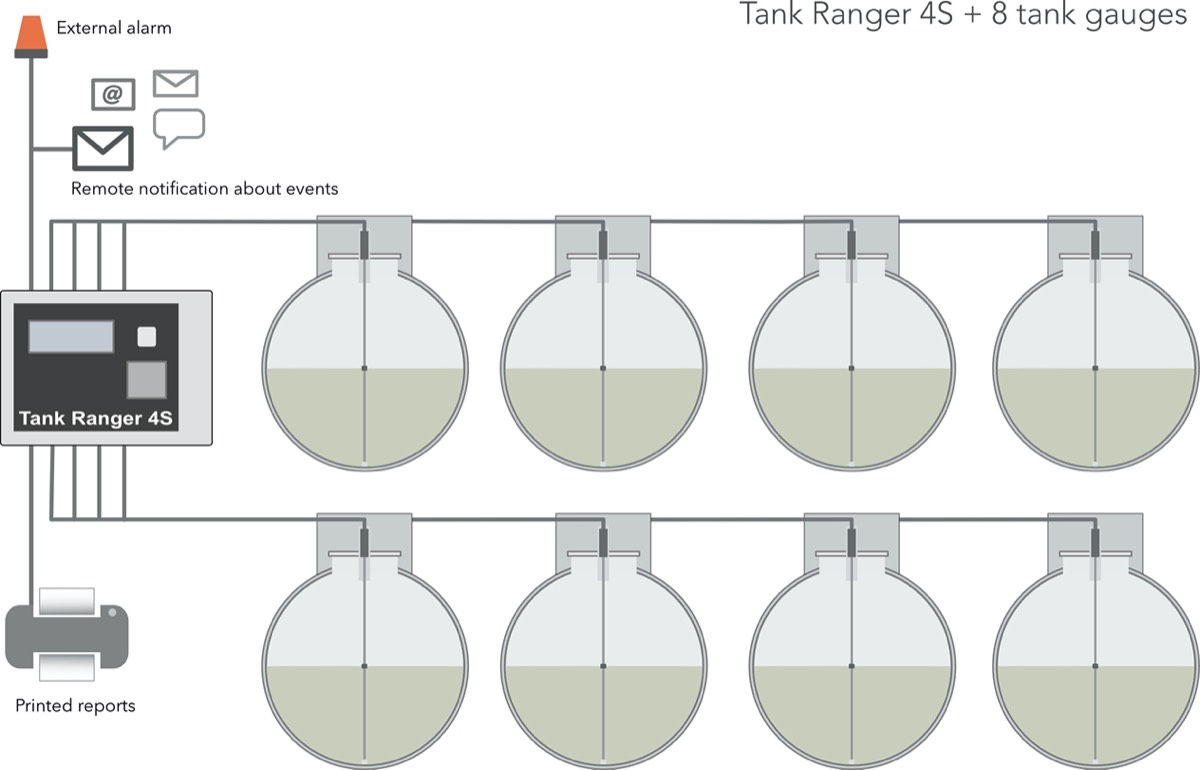

Tank Ranger 4S measurement system.
Constant measurement of the quantity of fuel in tanks.

Tank Ranger 4S may be connected to 1 to 8 magnetostrictive measurement probes or analog probes (4..20 mA, MODBUS). The central unit may also be equipped with a printer for reports. It also serves as an alarming system for overflow, as well as a safety system controlling, for example, a stop valve, a gate, a unit or another device.
Any information regarding the operation of the central unit may be displayed on an alphanumeric LCD display. A keyboard may be used to access this information. It cooperates with building automation master systems, fire-safety systems and serves as a safety system.
Depending on the program's settings, an alarm causes the activation of light signaling (a lamp) or acoustic signaling (a buzzer), or the printout of an alarm report. Depending on the program's configuration, the alarm may also cause the activation of 1 to 10 relays which enable the control over other external devices.
An alarm situation may also be signaled with a text message via a GSM module, or read via a web browser.

• product quantity measurement
• product temperature measurement
• temperature adjustment of product quantity
• automatic delivery detection
• water quantity measurement
• signaling low or high product, high water, delivery
• probe failure signaling
• remote notification about events
• control over external devices

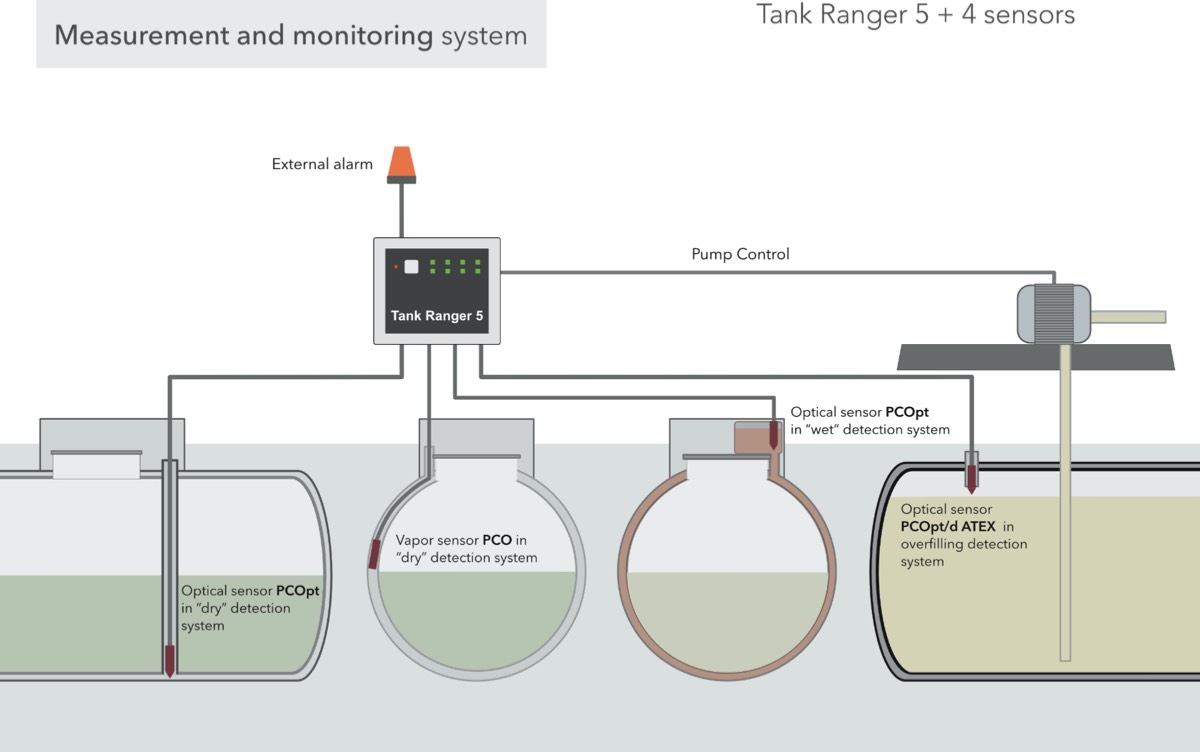

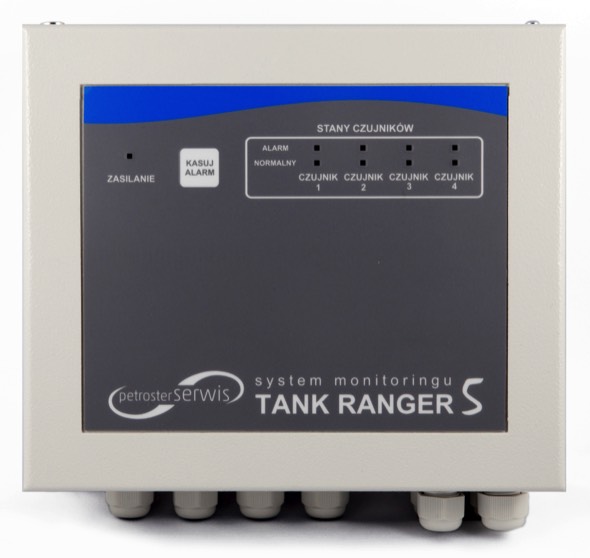

Tank Ranger 5 monitoring system.
Constant detection of leaks.

Tank Ranger 5 is a clear, easy-to-use and trouble-free system for the detection of leaks adjusted to continuous operation, monitoring the tightness of tanks, pipelines, fuel and industrial systems. It also serves as an alarming system for overflow, as well as a safety system controlling, among others, a stop valve, a fan, a gate or another device.

• it supports up to 4 various types of detection sensors
• it may operate in dry or wet systems
• it has an embedded visual and acoustic alarm
• as a standard, it can control 2 external devices

Work with sensors manufactured by Petroster-Serwis:

• optical sensor for liquids - PCOpt
• optical sensor for liquids ATEX certified - PCOpt/d
• selective optical sensor for liquids - PCOpt/s
• oil-derivative products vapor sensor - PCO
• vapor sensor ATEX certified - PCO/d
• vapor sensor compatible with other systems - PCO/vr
• LPG sensor - PCG
• ethyl alcohol - PCA
• carbon monoxide sensor - PCC
• esters sensor - PCOes
• ammonia sensor - PCOam
• hydrogen sulfide sensor - PCOsw
• ethanol sensor - PCOet
